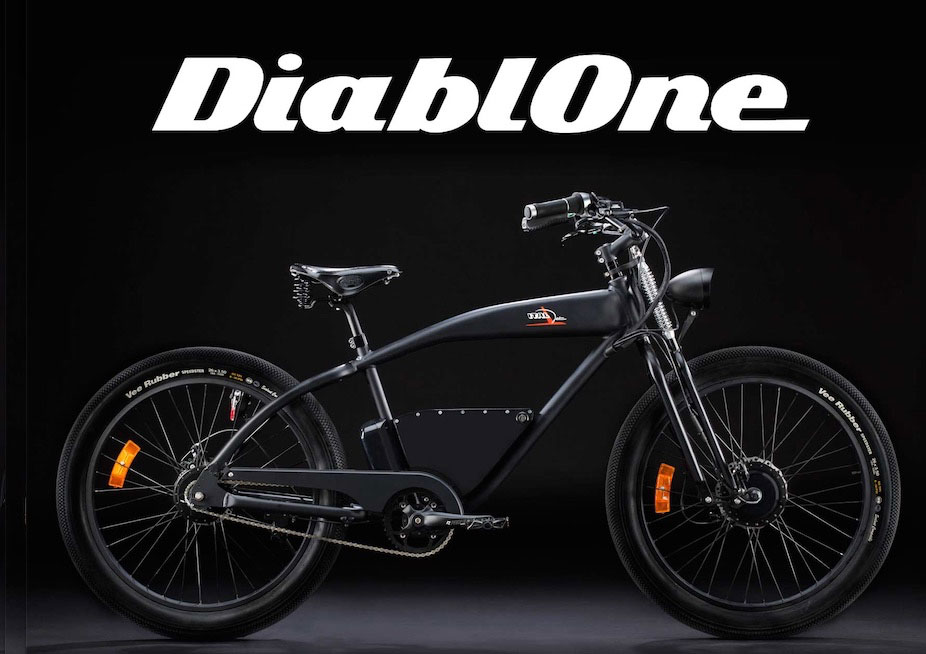

Technische Specificaties en basisprijs Italjet DiablOne

Frame Alloy, hydroformed frame,

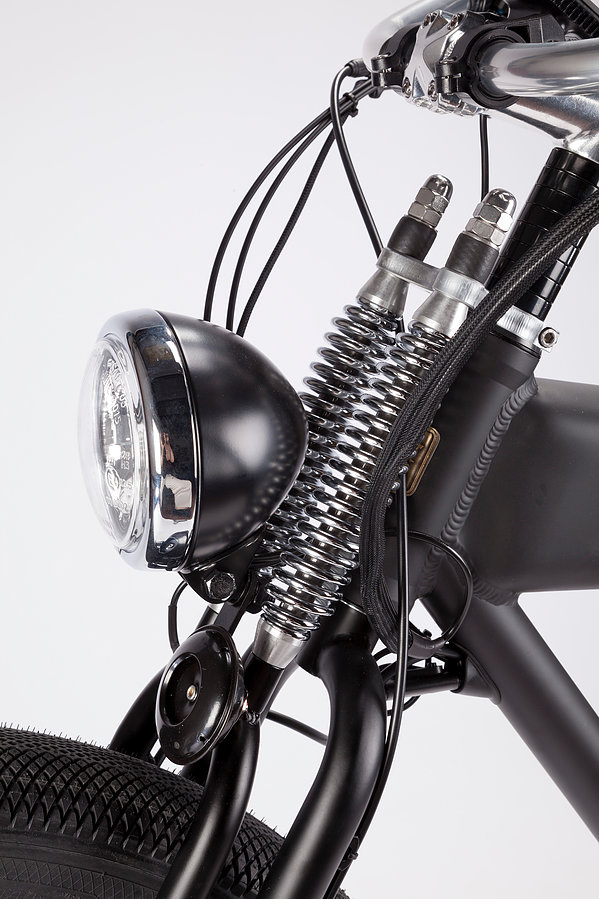

Fork Italjet Spinger with double spring and 4 bearings
Head parts Alloy
Handle bar Allow, W=630mm black
Grip Leather
Shifter NuVinci N360H-C225-SV
Chainwheel 42Tx170L,CP teeth, alloy crank, PL-244A-2
Chain KMC,silver
Freewheel 20T, NuVinci
Pedal Alloy black anodized
Brake lever Tektro electric brake lever, black/silver,right side for front brake
Front brake Tektro hydraulic disc-brake
Rear brake Tektro mechanic disk brake
Hub NuVinci N360B-36SV-DC-12 N360 CVP BULK
Spoke 13G, stainless spoke, copper nipple
Rim Double wall, H=18mm alloy, 24”x 45mm
Tire 24”x3.0
Tube 24”x3.0
Seat post Alloy
Saddle Brooks Flyer
Seat pin Alloy with Q/R
Kickstand Alloy located in the rear arm
Mudguard Steel
Chaincover Steel, F-type
Motor 8Fun, 36Vx250W,brushless front motor, speed<25km/H
Controller 36Vx250W,
Display BAFANG C965, 5-step
Battery + 17.6 A.
Charger 42V 3A
Battery case In alloy, removable
Light Front: halogen 15w, Rear: LED laterally mounted
PAS Sensor Magnetic sensor,12points
Bell Electronic horn
Range From 70 to 90 Km
Battery recharging time 4 hours
Price
€ 3.990,-
